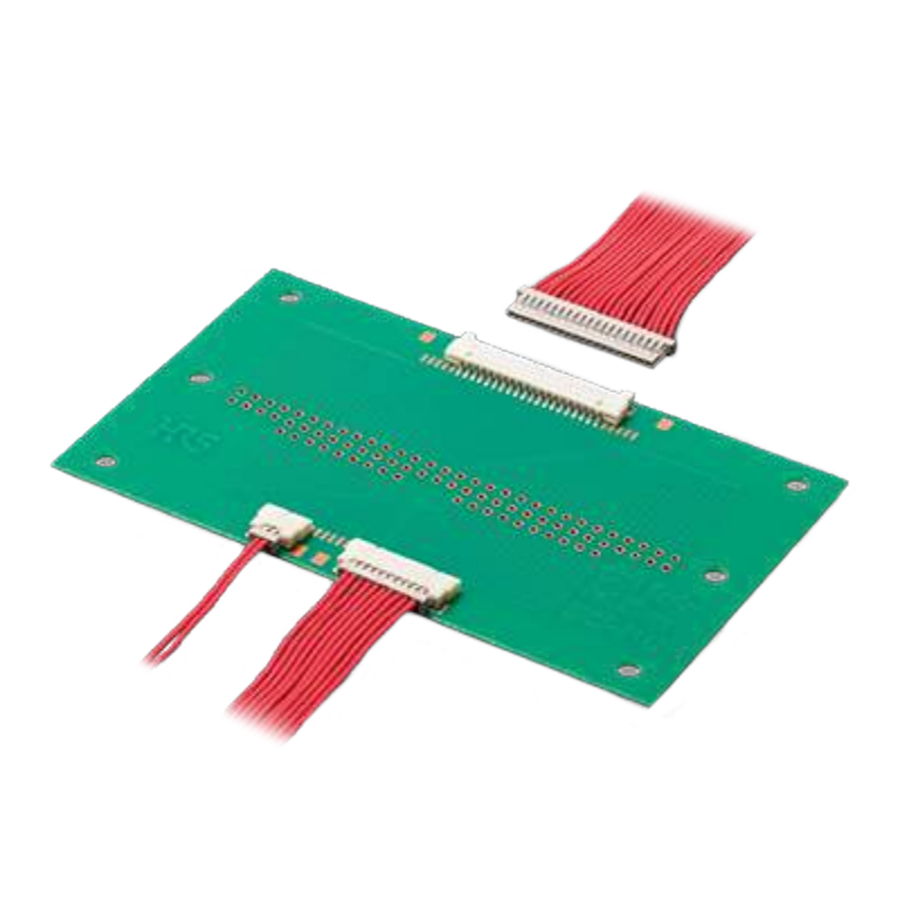

DF14A-8P-1.25H(56)
Manufacturer:
Hirose Electric
Mfr.Part #:
DF14A-8P-1.25H(56)
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:8 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Length | 14.95 mm |
| Width | 6.7 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -35 °C |
| Height | 2.5 mm |
| Packaging | Reel |
| Voltage Rating | 150 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | Beige |
| Gender | Pin (Male) |
| Number of Contacts | 8 |
| Connector Type | Header |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Contact Gender | Male |
| Mating Post Length | 2.20 mm |
| Contact Voltage Rating (AC) | 150 V |
| Contact Pitch | 1.25 mm |
